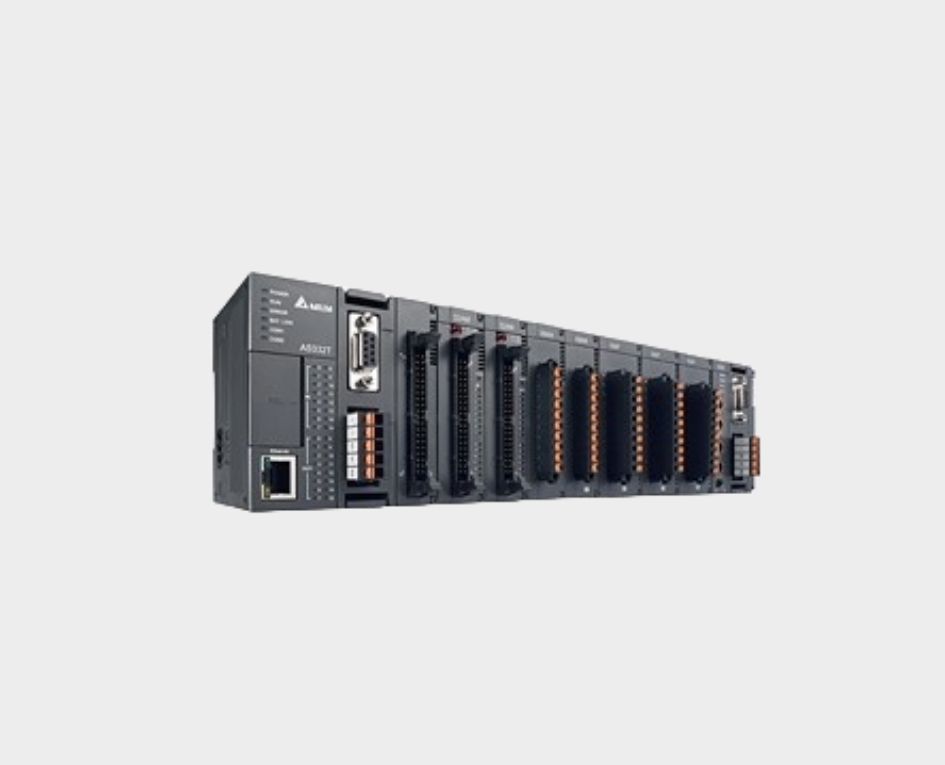

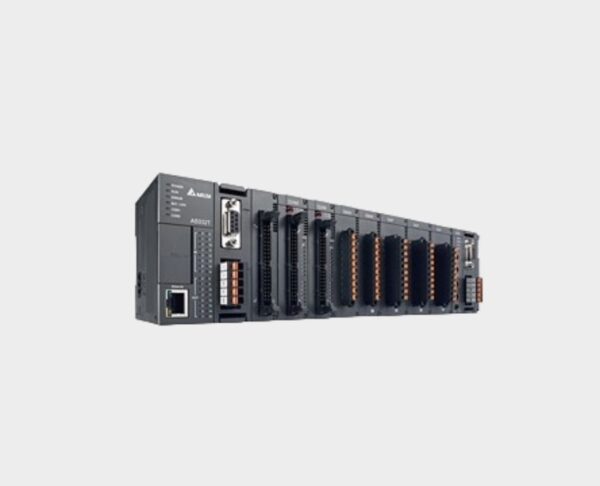

Delta Compact Modular Mid-range PLC AS

Delta Compact Modular Mid-range PLC AS

Flexible, Smart, Friendly – The Best Choice for Automated Equipment Control

The Delta Compact Modular Mid-range PLC AS Series is a high-performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via the CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labelling, food packaging, and textile machines.

Applications

Automated equipment such as electronics manufacturing, labelling, food packaging, and textile machines

Category: Tags: ,

Description

Features & Benefits
  • New 32-bit SoC (System on Chip) CPU to enhance execution speed（40 k steps/ms）
  • Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
  • Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement
  • ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning
Specifications
  1. New 32-bit SoC (System on Chip) CPU
  2. Max. I/O: 1,024
  3. Program capacity: AS300 series 128k steps, AS200 series 64k steps
  4. Data registers: 60k words
  5. Extension modules: max. 32 (analogue modules: max.16 / communication modules: max. 4)
  6. Execution speed: up to 40k steps/ms
  7.      – Basic instruction (LD): 25 ns
  8.      – Application instruction (MOV): 0.15 μs
  9. Abundant selection of DIO modules, AIO modules, temperature modules, load cell modules and function cards.
