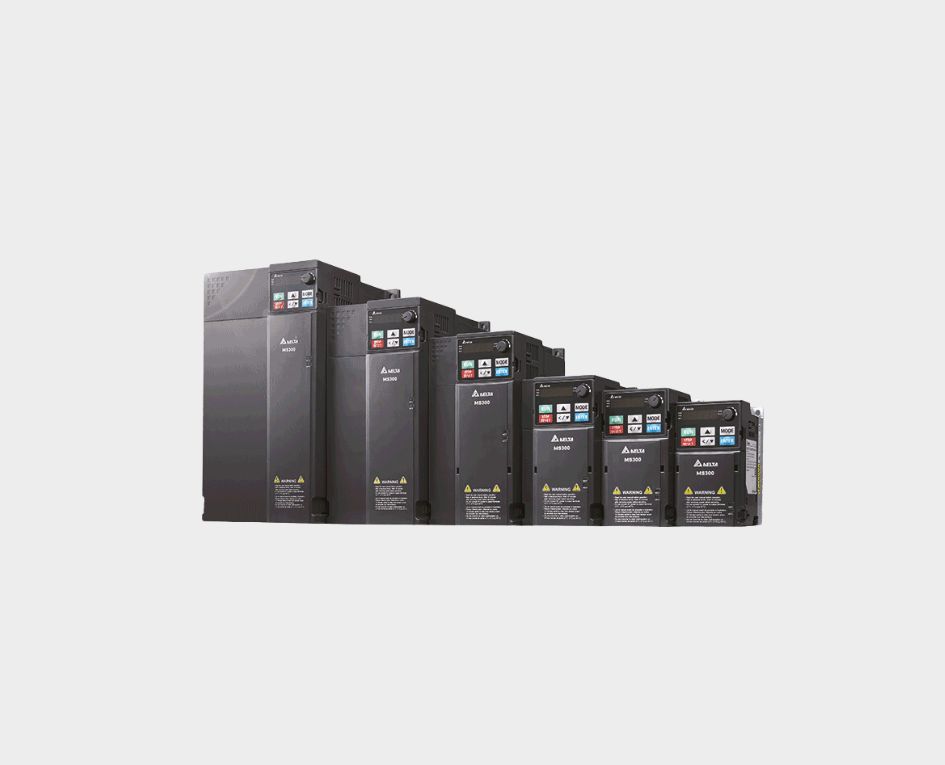

Delta AC Motor Drives – MS300 Series

₹6,650.00 – ₹21,640.00

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing a high efficiency and stability system —all included in the MS300 series with drive size reduced by up to 40%.

Applications –

Machine tools, textile machines, woodworking machines, packaging machines, electronics, fans, pumps, air compressors

SKU: N/A Category:

Description

Specifications
  • Supports Open loop control of IM and PM motors
  • Output frequency:
    Standard models: 0 to 599 Hz
    High-speed models: 0 to 1,500 Hz (V/f control for IM motor only)
  • Dual rating design:
    120% for 60 seconds for Normal Duty (ND)
    150% for 60 seconds for Heavy Duty (HD)
  • Built-in PLC program with 2K steps capacity
  • Built-in brake choppers for the entire series
  • Removable 5-digit LED keypad for remote operation
  • Safety standard compliance: Safe Torque Off (SIL2/PLd)
  • Multi-motor Control， built-in four IM motor control parameters
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
  • One high-speed pulse input terminal MI7 built-in with a maximum speed of up to 33kHz
  • One high-speed pulse output terminal DFM built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET

Power range

Additional information

Rating

0.25 HP, 0.5 HP, 1 HP, 1.5 HP, 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP
Input Power

1-phase, 3-phase
